Metronome Strike Manual

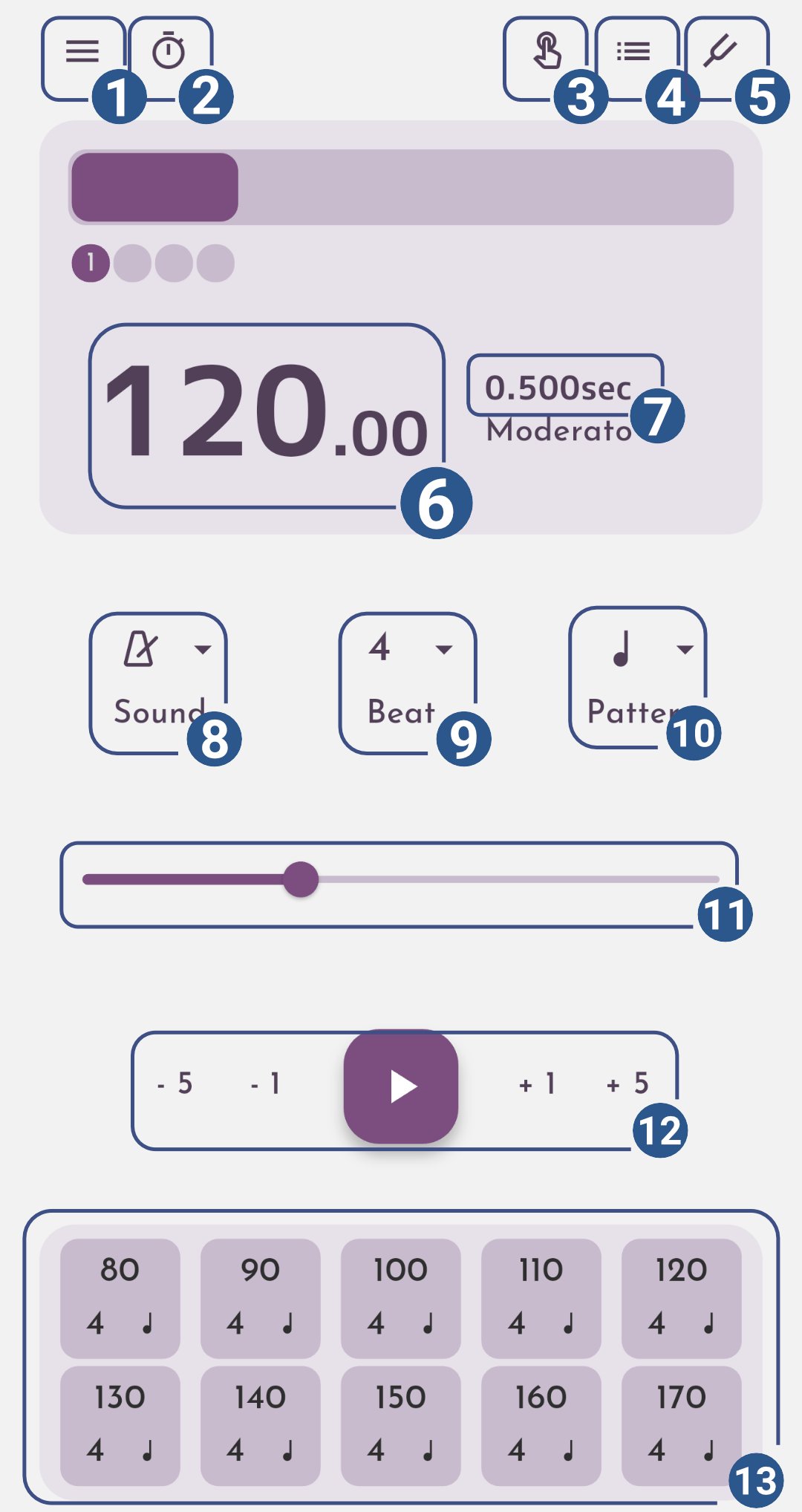

Main View Description

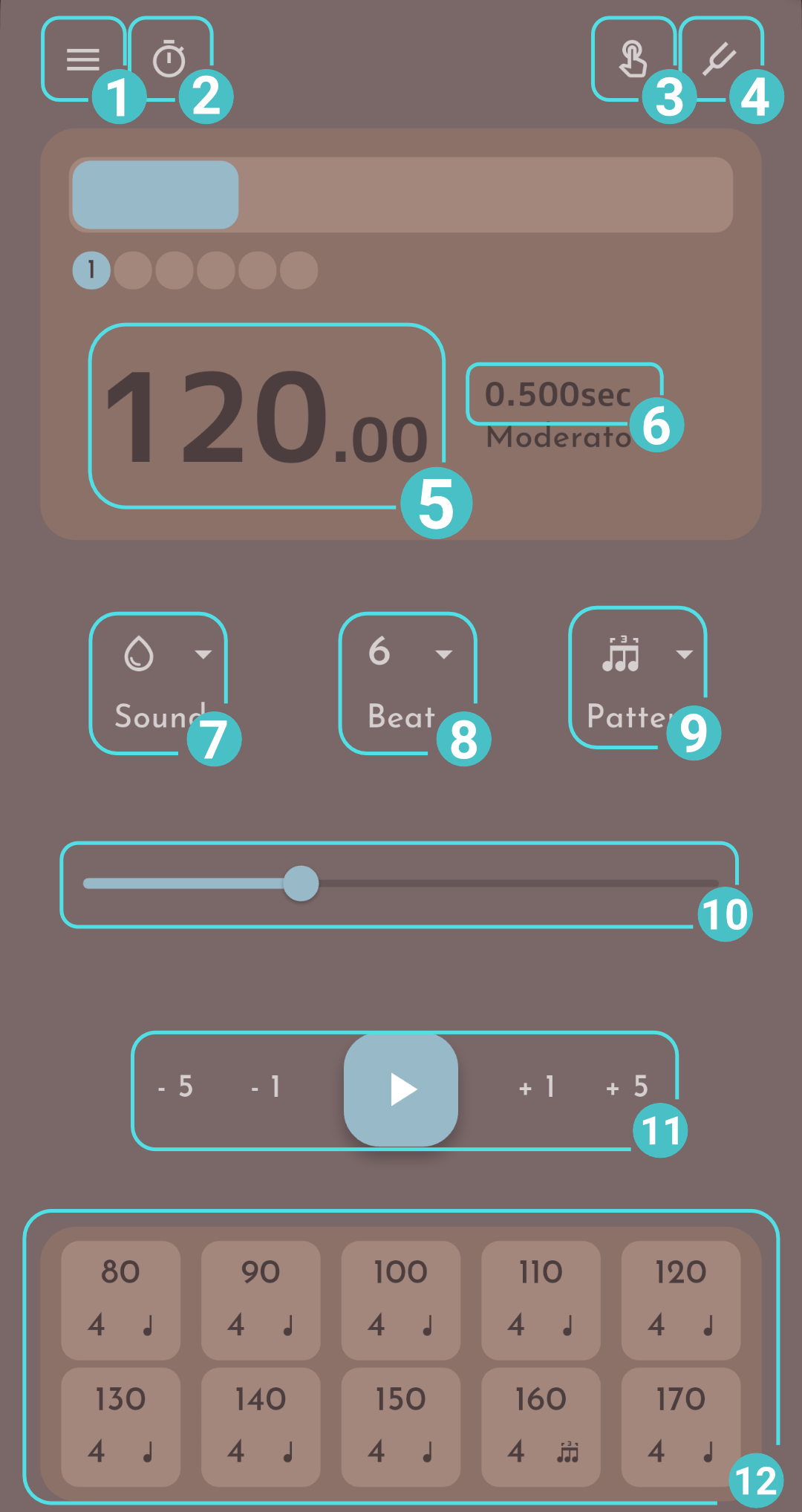

tutorial
  • Open the drawer menu.
  • Set the timer.
  • Open the tap function dialog.
  • Open the program function.
  • Open the tuner page.
  • BPM display (Tap the display area to enter directly using the numeric keypad dialog.)
  • Seconds display (Tap the display area to enter directly using the numeric keypad dialog.)
  • Set the sound.
  • Set the beat.
  • Set the pattern.
  • Slider for tempo setting.
  • Tempo setting and play/stop control.
  • Set the presets.

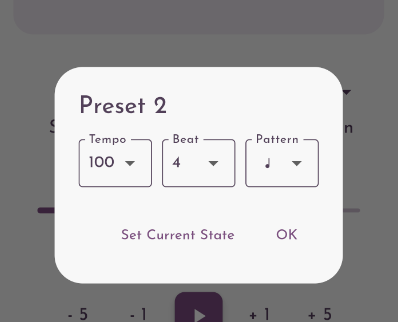

Preset Button

Quickly recall frequently used settings (tempo, beat, pattern). Tap each button to switch to the saved settings. To save the current settings, long press and set in the displayed dialog.

tutorial gif

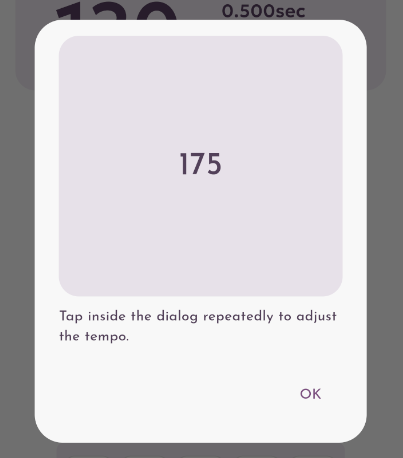

Tap Tempo Button

Tap at regular intervals within the dialog to set the desired speed. Once the desired tempo is found, tap the OK button to register it.

tutorial gif

Drawer Panel

Option Description
Animation Type Swing The block swings back and forth like a pendulum.
Step The block moves a certain distance.
Stretch The block expands and contracts from the center.
Animation BPM display blinking toggle
Flash BPM display blinking toggle
Display Step Toggle step display
First Beat Emphasis Toggle for adding a strong sound to the beginning of the bar
Animation Delay Set the delay time for the animation
Volume Set the volume of the metronome
Pan Adjust the volume on the left and right

Program Function

Tap the lists icon to use the program function.
Tap the + button in the bottom right of the program management screen to add a new program.
Press the > button on each row to proceed to the program details.
Press the + button in the bottom right of the program details screen to add a measure.
You can edit each item by tapping on the row.
Press the play button in the bottom right to move to the playback screen and start playback. You can also play directly from the play button on each row in program management.

Tuner

Tap the icon to use the tuner function.
To use the tuner function, you need permission to access the microphone.

The following two display states are within the range of -5 to +5 cents (generally the same as a tuner).

tuner_left tuner_right

If there is only one in the center, it is within the range of -2.5 to +2.5 cents.

tuner_center

Other Settings

Option Description
Disable screen off Default: Enabled If enabled, the screen will not turn off while the app is in the foreground.
Limit animation above 350 BPM Default: Enabled Limits animation above 350 BPM. If disabled, it will try to play animation as fast as possible. Animation is fast, so it requires a lot of processing.
Play in the background Default: Enabled If enabled, the app will continue to play even when it moves to the background.
BPM up/down value Default: 5 Range: 2 - 30 Set the value of the buttons on both sides of the play/stop button.
Theme Default: Dark mode: Blue Dark, Light mode: Purple Light
Language Set the language

Remove ads (in-app purchase)

Purchasing removes ads permanently.
